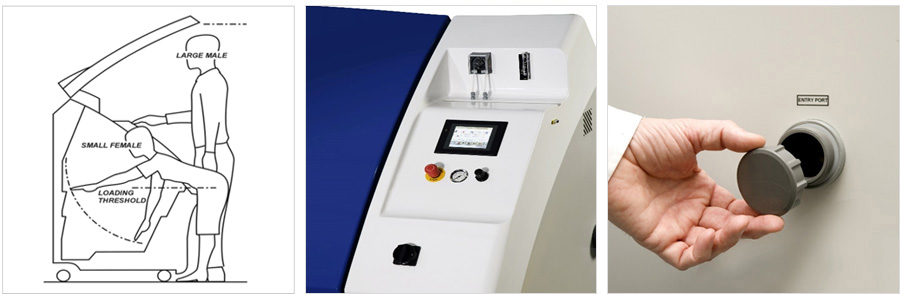

User Interface
사용자에 편의에 맞춘 설계
Touch Screen
정확한 분무량 조절 (정량펌프, Air Adjust Valve)
Chamber 외부에서 공급(전력, Sensor)이 가능한 Entry Port

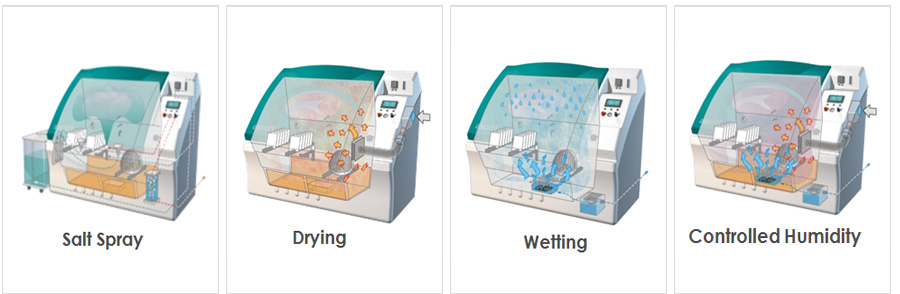

Performance
| Wetting mode | Temperature range Humidity range |
Adjustable from amblent to +70℃/+158℉ Fixed at 95% - 100% RH |
|---|---|---|
| Salt spray mode | Temperature range Salt spray fall-out rates |
Adjustable from amblent to +50℃/+122℉ Adjustable from 0.5 to 2.5ml per 80㎠ per hour |
| Drying mode | Temperature range Humidity range |
Adjustable from amblent to +70℃/+158℉ Uncontrolled |
| Controlled humidity mode | Temperature/humidity range | See above graph |
 |
 |
 |
 |
 |
 |
|||
|---|---|---|---|---|---|---|---|---|
| Standard salt spray chambers | S120iS | S450iS | S1000iS | S1300iS | S2000iS | S2600iS | ||
| Premium salt spray chambers | S120iP | S450iP | S1000iP | S1300iP | S2000iP | S2600iP | ||
| Cyclic corrosion test chambers | - | CC450iP | CC1000iP | CC1300iP | CC2000iP | CC2600iP | ||
| Chamber capacity | 120 Ltrs./4.2 cu.ft | 450 Ltrs./15.8 cu.ft | 1000 Ltrs/35.3 cu.ft | 1300 Ltrs/45.9 cu.ft | 2000 Ltrs/70.6 cu.ft | 2600 Ltrs/91.8 cu.ft | ||
| Mounting format | Bench top | Floor standing | Floor standing | Floor standing | Floor standing | Floor standing | ||
| Loading threshold | 280mm/11” | 800mm/31.5" | 800mm/31.5" | 800mm/31.5" | 800mm/31.5" | 800mm/31.5" | ||
| Chamber weight (estimated, without optional accessories) |
76kg | 190kg | 255kg | 285kg | 330kg | 355kg | ||
| Chamber external dimensions, max | W D H |
1315mm/51.8" 680mm/26.8" 800mm/31.5" |
1660mm/65.4" 840mm/33.1" 1510mm/59.5" |
2025mm/80.0" 1145mm/45.0" 1720mm/67.5" |
2025mm/80.0" 1156mm/45.5" 1906mm/75.0" |
2885mm/113.6" 1145mm/45.0" 1720mm/67.5" |
2885mm/113.6" 1156mm/45.5" 1906mm/75.0" |
|
| Chamber internal dimensions, max | W D H |
715mm/28.2" 490mm/19.3" 490mm/19.3" |
1010mm/39.5" 640mm/25.0" 1140mm/45.0" |
1300mm/51.2" 980mm/38.5" 1320mm/52.0" |
1300mm/51.2" 980mm/38.5" 1528mm/60.2" |
2160mm/85.0" 980mm/38.5" 1320mm/52.0" |
2160mm/85.0" 980mm/38.5" 1528mm/60.2" |
|
| Salt solution reservoir ext. dimensions | W D H |
integral integral integral |
460mm/18.1" 620mm/24.5" 675mm/26.6" |
560mm/22.0" 620mm/24.5" 675mm/26.6" |
560mm/22.0" 620mm/24.5" 675mm/26.6" |
560mm/22.0" 620mm/24.5" 675mm/26.6" |
560mm/22.0" 620mm/24.5" 675mm/26.6" |
|
| Removable slotted sample racks to suit upper mounting position. | 4 racks each with 23 angled slots |
6 racks each with 28 angled slots |
8 racks each with 46 angled slots |
8 racks each with 46 angled slots |
16 racks each with 46 angled slots |
16 racks each with 46 angled slots |
||
| ------------------------- Each with 3mm (1/8") wide slots, angled at 15 degress from vertical ------------------------- | ||||||||
| Chamber construction | Glass reinforced plastic, Polypropylene & PVC parts. | |||||||
| Color | 9 standard colors to choose from. | |||||||
| Electricity supply | Standard salt spray models Premium salt spray models CCT models |
1 phase 1 phase - |
1 phase 1 phase 3 phase |
1 phase 1 phase 3 phase |
1 phase 1 phase 3 phase |
1 phase 3 phase 3 phase |
1 phase 3 phase 3 phase |
|
| Water | Voltage (VAC) and frequency (Hz) dependant on country/region of installation. The air saturator, humidity generator and salt solution reservoir all require separate connections to a continuous, pressurized deionized/distilled water supply of 0.5–5.0 bar (7.3–73 psi). |
|||||||
| Air | Clean dry & oil free, 4.0 to 6.0 bar (58-87psi) with 240 Ltrs (8.5cu.ft) per minute flow | |||||||
| Exhaust | 3m (10ft) exhaust pipe is provided which should be terminated outside building. | |||||||
| Drain | 3m (10ft) drain pipe provided which should be terminated into floor level drain. | |||||||
| Operating environment conditions | Indoors, with ambient maintained at +18 to +23°C (+64 to 73°F), 85% max RH (non-condensing). | |||||||
