Hollow Cathode Lamp
HIGH INTENSITY
Our lamps are specially designed to emit high intensity at the recommended operating current, resulting in low
Signal-to-Noise ratio and excellent performance.
LOW OPERATING CURRENT
we recommend operating current 1/3 maximum current. To obtain best result and maximize lamp life, use
the recommended operating current.
DESIGN
Our lamps are specially designed to meet or exceed the requirements for various types of atomic absorption
spectrometers and to provide low detection limits for your most difficult analysis.
QUALITY CONTROL
Our lamps are specially designed to meet or exceed the requirements for various types of atomic absorption
spectrometers and to provide low detection limits for your most difficult analysis.We monitor, control and inspect
every single step of the hollow cathode lamp manufacturing process. The materials are carefully selected in our
manufacturing to avoid spectral interference from fill gas or impurities in the cathode material.
Every lamp is thoroughly tested prior to shipment. Under same testing conditions, the radiation intensity of every
lamp is equal to or better than those made by other vendors.
Category | Data |
---|---|
Glowing starting voltage | 300 |
Radiation stability | 1% over 30 minutes |

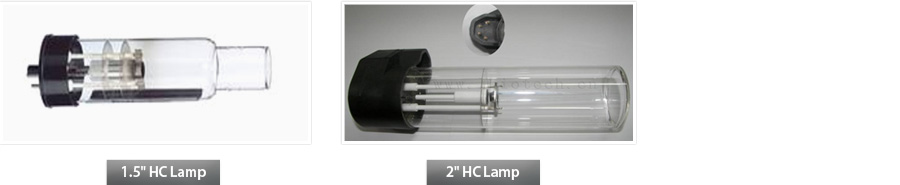

Size : 2" for Perkin-Elmer | Diameter : 50mm, Length: 180mm |
Size : 1.5" for lamps | Diameter : 38mm, Length: 160mm |
