Toy safety measuring instrument-EDX6600D

홈 > XRF > EDX6600D

Instrument introduction

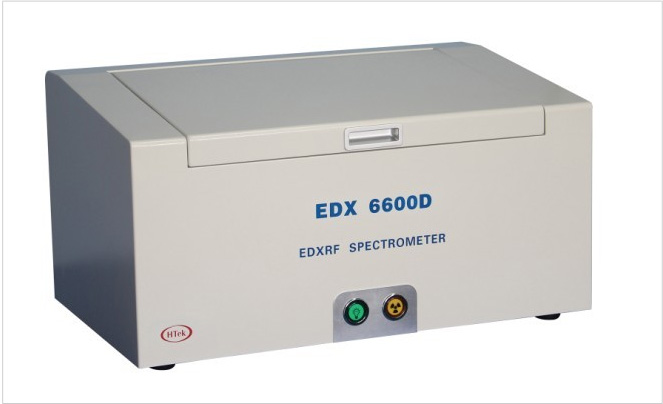

EDX6600D incorporating HTeks years of RoHS testing . With its unique product configurations, fully functional software, ergonomically design and friendly software interface, it can meet the RoHS testing requirement and grants the users a simple measurement job.

Performance characteristics

Automatic collimators and filters switch

Professional RoHS detection

In-built SNE improves signal processing ability up to 25 times

Intelligent RoHS analysis software matches with the instrument well

Arbitrary optional analysis and identification models

Multi-variable non-linear regression procedures

Technical specifications

Measurable elements: S to U.

Detection limit reaches 1ppm.

Element content: 1ppm to 99.9%

Arbitrary optional analysis and identification models

Independent matrix effect correction models

Multi-variable non-linear regression procedure

Excellent repeatability: 0.1%

Long-time working stability: 0.1%

Ambient temperature: 15℃ to 30℃

Power supply: AC 220V±5V, AC purified stabilized voltage power supply.

Standard configurations

Movable sample platform

Signal-to-Noise Enhancer (SNE)

Electric-cooling Si-PIN detector

Signal detection electronic circuit

High and low voltage power

X-ray tube of high power

Standard configurations

RoHS detection and analysis
Detection for concentration of golden, platinum, silver, other precious metals and various jewelries
Detection for plating thickness of metals, concentration of plating solution and plating
Full-element analysis for minerals and other resources
Mainly applied in RoHS directive industries, precious metals and jewelries processing industries; banks, jewelry shops and test institutes; electro plating industries
