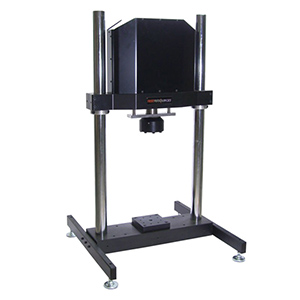

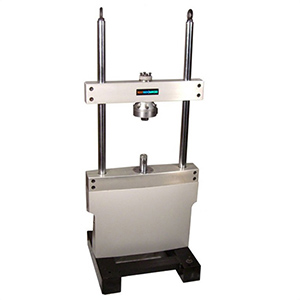

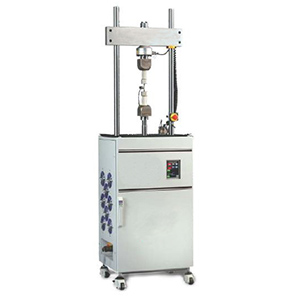

| Low Force models | 840LE1 | 840LE2 | 800LM25 |
|---|---|---|---|
| Load Frame Style | Compact | Compact | Tabletop |
| Static Force (Max) | ±100 N (22 lbf) | ±1.5 kN (350 lbf) | ±170 N (38 lbf) |
| Dynamic Force (Max) | 5 kN (1,125 lbf) | ±1.5 kN (350 lbf) | ±240 N (54 lbf) |
| Frequency (Max) | 5 Hz | 15 Hz | 75 Hz |
| Stroke (Std) Note 1 | ±37 mm (3 in) | ±75 mm (6 in) | ±25 mm (1 in) |
| Speed (Max) Note 1 | 40 mm/s (100 in/min) | 200 mm/s (8 ips) | 4,000 mm/s (160 ips) |
| Model | 901LX100 | 902LX250 | 903LX500 | 907LX2000 |
|---|---|---|---|---|
| Max Force Capacity | 100 kN(22,500 lbf) | 250 kN(55,000 lbf) | 500 kN(112 kip) | 2 MN (445 kip) |
| Frame Style | Dual Column Floor | Dual Column Floor | Dual Column Floor | Four Column Floor |
| Model | 910LX5 | 910LX10 | 910LX15 | 910LX25 |
|---|---|---|---|---|
| Max Force Capacity | ±5 kN(1,125 lbf) | ±10 kN(2,250 lbf) | ±15 kN(3,375 lbf) | ±25 kN(5,500 lbf) |
| Max Axial Speed | 100 Hz | 100 Hz | 75 Hz | 50 Hz |
