| Series | Type | Applications | Torque Ranges | Max Frequency |
|---|---|---|---|---|
| 160 Series | Electromechanical | Static | ±2 Nm to 5,500 Nm(18 lbf·in to 50,000 lbf·in) | 2 Hz |
| 560 Series | All-Electric Dynamic | Static, Dynamic, Fatigue | ±10 Nm to 300 Nm(90 lbf·in to 2,650 lbf·in) | 15 Hz |
| 960 Series | ServoHydraulic | Static, Dynamic, Fatigue | ±1 Nm to 80 kNm(9 lbf·into 708 klbf·in) | 30 Hz |

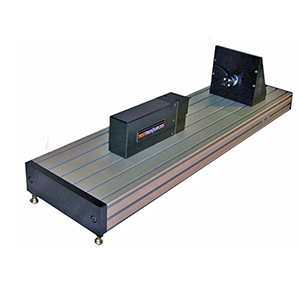

| Series | 160 |
|---|---|
| Force | Four actuators rated 2 Nm (17 lbf·in) to 3000 Nm (27000 lbf·in) |
| Speed | Speed ratings range from 2 to 140 RPM |
| Column Clearance | 4 in (100 mm) |
| Travel | Continuous rotation -clockwise (CW) and counterclockwise (CCW) |

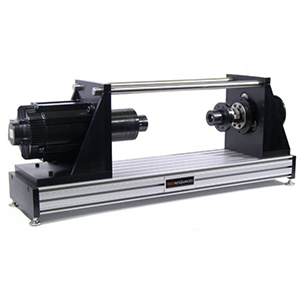

| Model | 560LTE7 | 560LT14 | 560LT95 | 560LTD200 |
|---|---|---|---|---|
| Figure Capacity | 12 Nm (105 lbf·in) | 18.8 Nm (165 lbf·in) | 135 Nm (1190 lbf·in) | 281 Nm (2500 lbf·in) |
| Stall or Static Capacity | 7 Nm (62 lbf·in) | 14 Nm (124 lbf·in) | 95 Nm (843 lbf·in) | 200 Nm (1775 lbf·in) |
| Speed at Full Load | 1,500 RPM | 1,500 RPM | 2,000 RPM | 250 RPM |

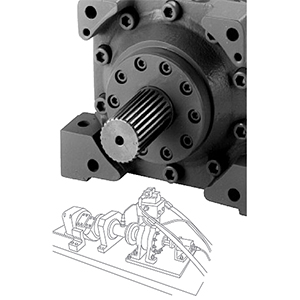

| Model | Max Force | Speed | Travel |
|---|---|---|---|
| 960Q & 960L | Seven rotary actuators rated 1,237 Nm (11,000 lbf·in) up to 78.7 kNm(696 klbf·in) | Fatigue rating depends upon dynamic requirements -typically 3 Hz | Continuous rotation -clockwise (CW) and counterclockwise (CCW) |
